Products Description63.2m³ Ln2 Storage Tank ASME Standard
CRYOGENIC STORAGE TANK
HONGTU has the ability to design and manufacture all kinds of refrigerated liquefied gas tankers with high vacuum multi-layer insulation. The susbstance can be LNG, liquid oxygen, liquid nitrogen, liquid carbon dioxide, etc.

Technical Specification
Design Code: GB/T 150 Pressure Vessels, GB/T18442, ASME BPVC SEC VIII-1 2013
Capacity: 3m³~200m³
Material: S30408,SA-240 304,16MnDR(Inner tank) / Q345R/SA-516,SA-516 GR.70(Outer tank)

LNG STORAGE TANK:
Capacity11.12m³11.2m³22.3m³33.4m³44.5m³55.6m³200m³200m³
Design CodeGB150-2011
GB/T18442.7
ASME VIII-1 2013ASME VIII-1 2013ASME VIII-1 2013ASME VIII-1 2013ASME VIII-1 2013ASME VIII-1 2013ASME VIII-1 2013
TypeHorizontalVerticalVerticalVerticalVerticalVerticalHorizontalVertical
LiquidLNGLNGLNGLNGLNGLNGLNGLNG
Filling Ratio≤0.9≤0.9≤0.9≤0.9≤0.9≤0.9≤0.9≤0.9
Curb Weight6300KGS8830KGS12600KGS16260KGS23700KGS27600KGS72800KGS72800KGS
Filling Weight4260KGS4260KGS8520KGS12780KGS17040KGS21300KGS76680KGS76680KGS
Total Weight10560KGS13090KGS21120KGS29040KGS40740KGS48900KGS149480KGS149480KGS
Design Pressure/Inner tank1.36MPa0.88MPa0.88MPa0.88MPa1.76MPa1.76MPa1.0MPa1.07MPa
Design Pressure/Outer tank-0.1MPa-0.1MPa-0.1MPa-0.1MPa-0.1MPa-0.1MPa-0.1MPa-0.1MPa
Working Pressure/Inner tank1.24MPa0.8MPa0.8MPa0.8MPa1.6MPa1.6MPa0.8MPa0.88MPa
Working Pressure/Outer tank-0.1MPa-0.1MPa-0.1MPa-0.1MPa-0.1MPa-0.1MPa-0.1MPa-0.1MPa
Design TemperatureInner Tank -196ºC, Outer Tank 50ºCInner Tank -196ºC, Outer Tank 50ºCInner Tank -196ºC, Outer Tank 50ºCInner Tank -196ºC, Outer Tank 50ºCInner Tank -196ºC, Outer Tank 50ºCInner Tank -196ºC, Outer Tank 50ºCInner Tank -196ºC, Outer Tank 50ºCInner Tank -196ºC, Outer Tank 50ºC
Overall Dimension5500x2416x2770mm6180x2520x2520mm9720x2520x2520mm13250x2520x2520mm11665x3020x3020mm13910x3020x3020mm24254x4024x4320mm23820x4028x4028mm
Material/Inner tankSA30408SA240 304SA240 304SA240 304SA240 304SA240 304SA240M 304SA240M 304
Material/Outer tankQ345RSA-516 GR.70SA-516 GR.70SA-516 GR.70SA-516 GR.70SA-516 GR.70Q345RQ345R
Head TypeEllipticalEllipticalEllipticalEllipticalEllipticalEllipticalEllipticalElliptical
Insulation TypeHigh Vacuum
Multi-Layer Insulation
High Vacuum
Multi-Layer Insulation
High Vacuum
Multi-Layer Insulation
High Vacuum
Multi-Layer Insulation
High Vacuum
Multi-Layer Insulation
High Vacuum
Multi-Layer Insulation
High Vacuum
Multi-Layer Insulation
High Vacuum
Multi-Layer Insulation

CRYOGENIC STORAGE TANK FOR LIQUID OXYGEN,NITROGEN,CARBON DIOXIDE,ETC
Design CodeGB150
GB/T18442
GB/T18442.7
ASME VIII-1 2013(inner tank)
GB150(Outer tank)
GB150
GB/T18442
GB/T18442.7
GB150
GB/T18442
GB150
GB/T18442
TypeVerticalVerticalVerticalHorizontalVertical
Capacity3.16m³11.4m³63.2m³31.6lm³52.7m³
LiquidLO2LO2LN2LCO2LCO2
Filling Ratio≤0.95≤0.95≤0.95≤0.95≤0.95
Curb Weight3500KGS14300KGS22000KGS18500KGS22000KGS
Filling Weight3420KGS12357KGS48420KGS30540KGS54100KGS
Total Weight6920KGS26657KGS70420KGS49040KGS76100KGS
Design Pressure/Inner tank1.6MPa1.82MPa0.88MPa2.31MPa2.31MPa
Design Pressure/Outer tank-0.1MPa-0.1MPa-0.1MPa-0.1MPa-0.1MPa
Working Pressure/Inner tank1.52MPa1.6MPa0.8MPa,2.2MPa2.2MPa
Working Pressure/Outer tank-0.1MPa-0.1MPa-0.1MPa-0.1MPa-0.1MPa
Design TemperatureInner Tank -196ºC, Outer Tank 50ºCInner Tank -196ºC, Outer Tank 50ºCInner Tank -196ºC, Outer Tank-20/50ºCInner Tank -40ºC, Outer Tank50ºCInner Tank -40ºC, Outer Tank50ºC
Overall Dimension3630x2330x2116mm5582x2870x2520mm15080x3020x3010mm11000x2616x2900mm13800x3050x3050mm
Material/Inner tankS30408SA240M 304S 3040816MnDR16MnDR
Material/Outer tankQ345RQ345RQ345RQ345RQ345R
Head TypeEllipticalEllipticalEllipticalEllipticalElliptical
Insulation TypeHigh Vacuum
Multi-Layer Insulation
High Vacuum
Multi-Layer Insulation
High Vacuum
Multi-Layer Insulation
High Vacuum
Multi-Layer Insulation
High Vacuum
Multi-Layer Insulation

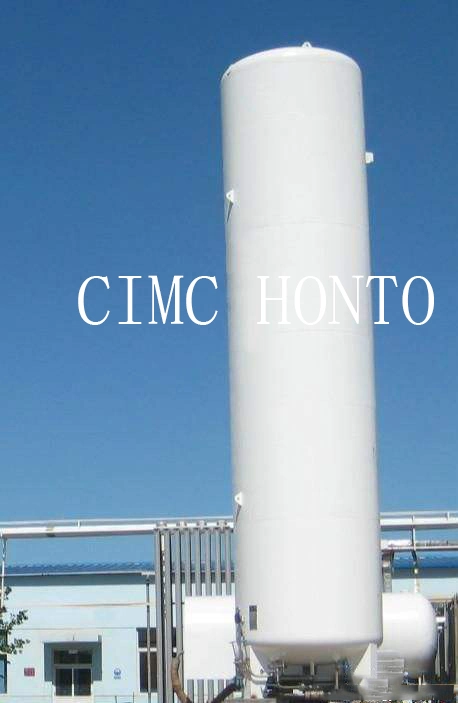

63.2m³ Ln2 Storage Tank ASME Standard
63.2m³ Ln2 Storage Tank ASME Standard




LN2/LO2/LN2/LCO2 CRYOGENIC STORAGE TANK
63.2m³ Ln2 Storage Tank ASME Standard
63.2m³ Ln2 Storage Tank ASME Standard






Company Profile

63.2m³ Ln2 Storage Tank ASME StandardJingmen Hongtu Special Aircraft Manufacturing Co., Ltd (hereinafter called HONGTU, and branded as HONTO) has made prominent contributions to the development of China's aviation industry since established in 1971 as the AVIC Corp II factory No. 322. Now, Hongtu as a key enterprise under China International Marine Containers (Group) Ltd. (CIMC) (ranked the 68th in China's Top 500 businesses), is engaged in R & D of normal temperature storage & transportation equipment, cryogenic storage & transportation equipment, EPC services, chemical equipment and other types of energy chemical storage & transportation equipment. The Company has more than 1,300 employees, including approx. 200 R&D professionals, and has workshop area totaling 130,000 m2.

In the 1980s, HONGTU entered into the industry of hazardous chemicals storage & transportation equipment manufacturing based on the advantages of aviation technology, providing customers with individualized and integrated solutions in the fields of hazardous chemicals'storage & transportation, gasification in cities/towns and vehicle/vessel's oil-to-gas transformation.

The Company always leads the development of the industry. The production and sales of "HONTO" Brand LPG tanker has been ranking No.1 in China in the past 36 years. The domestic market share of HONGTO reaches over 60% all along. HONGTU has been engaged in the manufacturing of energy and chemical storage & transportation equipment for over 3 decades and is also China's only LPG full-industrial chain equipment manufacturer and solution provider.

The Company has ASME "U" and "U2" Stamps Qualification and all Chinese National Permits for design, manufacture and installation of various pressure vessels, spherical tanks, urban gas pipeline projects and marine fuel tanks, and has developed and drafted a number of national standards on pressurized and non-pressurized products of China.

The Company provides global customers and partners with safe, efficient and value-added energy and chemical storage &
transportation equipment under the concept of providing service in the full product life cycle and creating values for customers, through the three-in-one marketing mode of brand communication, product sale and lifelong service, and is committed to become a leading competitive supplier with in the field of global energy chemical industry.

"HONTO" brand LPG storage and transportation equipment has been distributed to more than 40 countries & regions in North America, South America, Southeast Asia, South Asia, Middle East and Africa, etc.
