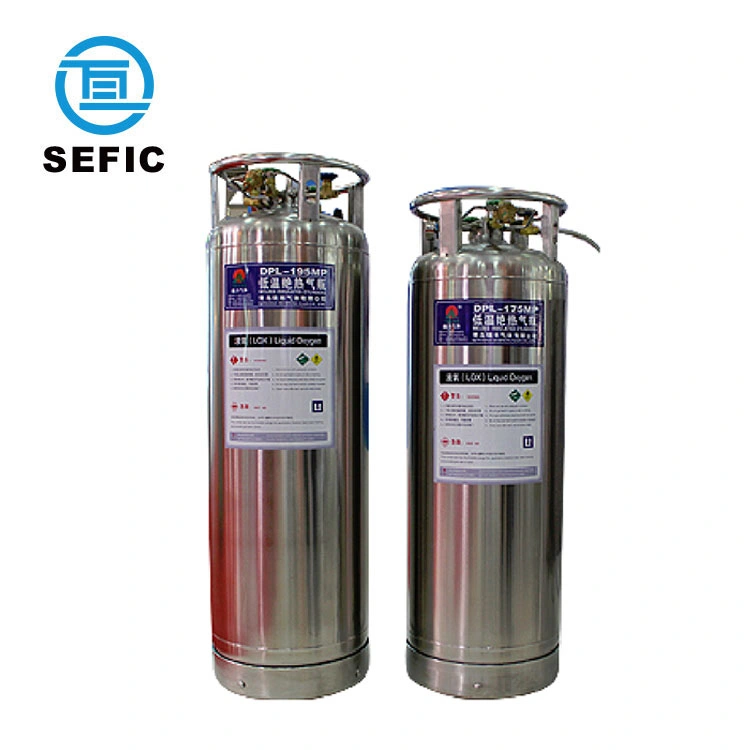

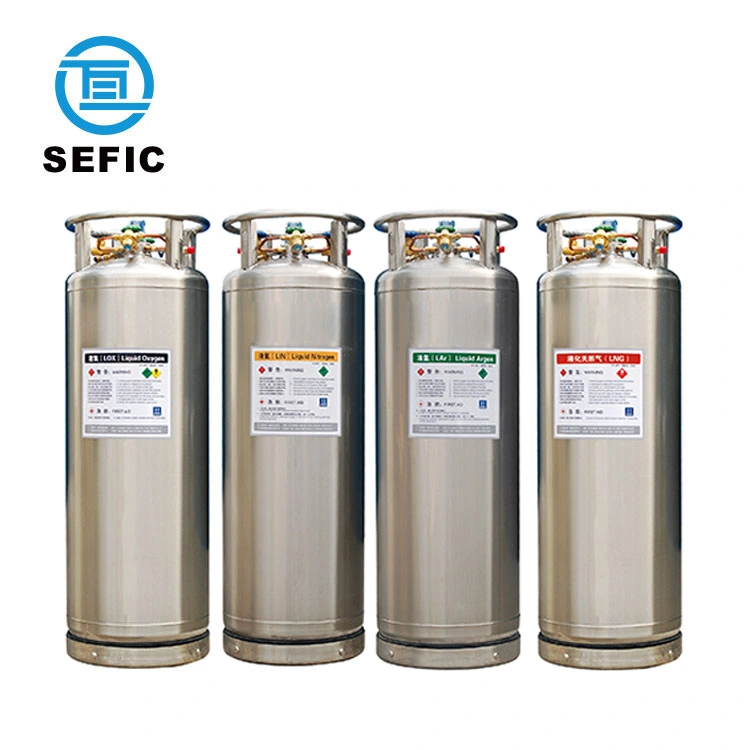

LOX/LIN/LAr/LCo2 Cylinder Dewar Tank
| LNG Cylinder Specification | ||
| Nominal Capacity | 175L | |
| Effective Capacity | 164L | |
| Max Filling Weight | LOX | 170kg |
| LIN | 120kg | |
| LAr | 208kg | |
| LCO2 | 164kg | |
| Nominal Working Pressure | 2.3Mpa | |
| Opening Pressure of Safety Value | 2.41Mpa | |
| Burst Pressure of Rupture Disk | 3.62Mpa | |
| Evaporation Rate | ≤2.10% | |
| Weight of Empty Cylinder | 133kg | |
| Overall Dimension(mm) | 505x1530 | |
| Liquid Level Gauge | Float Rod | |
| Surface Treatment | Polish | |
| Base-support Structure | Foot Ring | |
| Approved Certification | DOT&GOST | |
Liquid Gas Cylinder Introduction:
Liquid cylinders are storage vessels that are specially designed and manufactured to accommodate the super cooled materials that are utilized in a wide variety of cryogenic applications. As these materials often exist in a gaseous state under normal atmospheric pressure and at room temperature, they are commonly referred to as 'liquefied gases' when pressure and temperature conditions have lowered them from the gaseous to the liquid state. Cryogenics itself is the study of the nature and uses of materials that have been cooled to temperatures far below those encountered in nature or in normal working conditions. Though it is a continuously expanding field of applied science, applications for such super cooled or cryogenic materials have already been developed in the aerospace, medical, manufacturing, and computing fields. It is precisely because the uses, and demand, for cryogenic materials have increased dramatically in recent history that SEFIC offers several cryogenic cylinders that can accommodate commonly utilized super cooled liquids and gases like liquid oxygen, argon, carbon dioxide, nitrogen, and nitrous oxide.
Dewar Manufacturing plant:
Frequently Asked Questions:
Q1. What is the capacity of this liquid gas cylinder?
A1. The capacity of this liquid gas cylinder is 175L.
Q2. What is the delivery time of this liquid gas cylidner?
A2. The delivery time of this liquid gas cylinder is 60 DAYS.
Q3. What kind of payment mode do you usually use?
A3. We accept TT, 30% as deposit and 70% before delivery.
Q4. What kind of cetification of this liquid gas cylinder do provide?
A4. We can provide you the DOT, GOST and TUV certifications.
