System power dual backup p1.25 Indoor Front Service Digital LED Video Wall
1.Most of our product use material as follow:
1.MBI 5153 IC or ICN2153 Driver IC
2.MW or G-energy power supply
3. 4layer pcb 2.0mm board
4. warranty.2-3years
1.· Durable, reliable, precisely made Aluminum die-casting, fanless design Small expansion coefficient
2. Spring locks connect the cabinets vertically,
3. Signal and power indicator & reset button well shows the working condition of the whole screen;
4. Fast spring locks connect the cabinets horizontally, only 10 seconds for per cabinet;
5. Light-weight 4.6kg/pc. for panel with light-weight sub-frame structure design
6. Nanotechnology and unique positioning system, making the installation and dismantlement in one step;
products descripition:
company introduction :

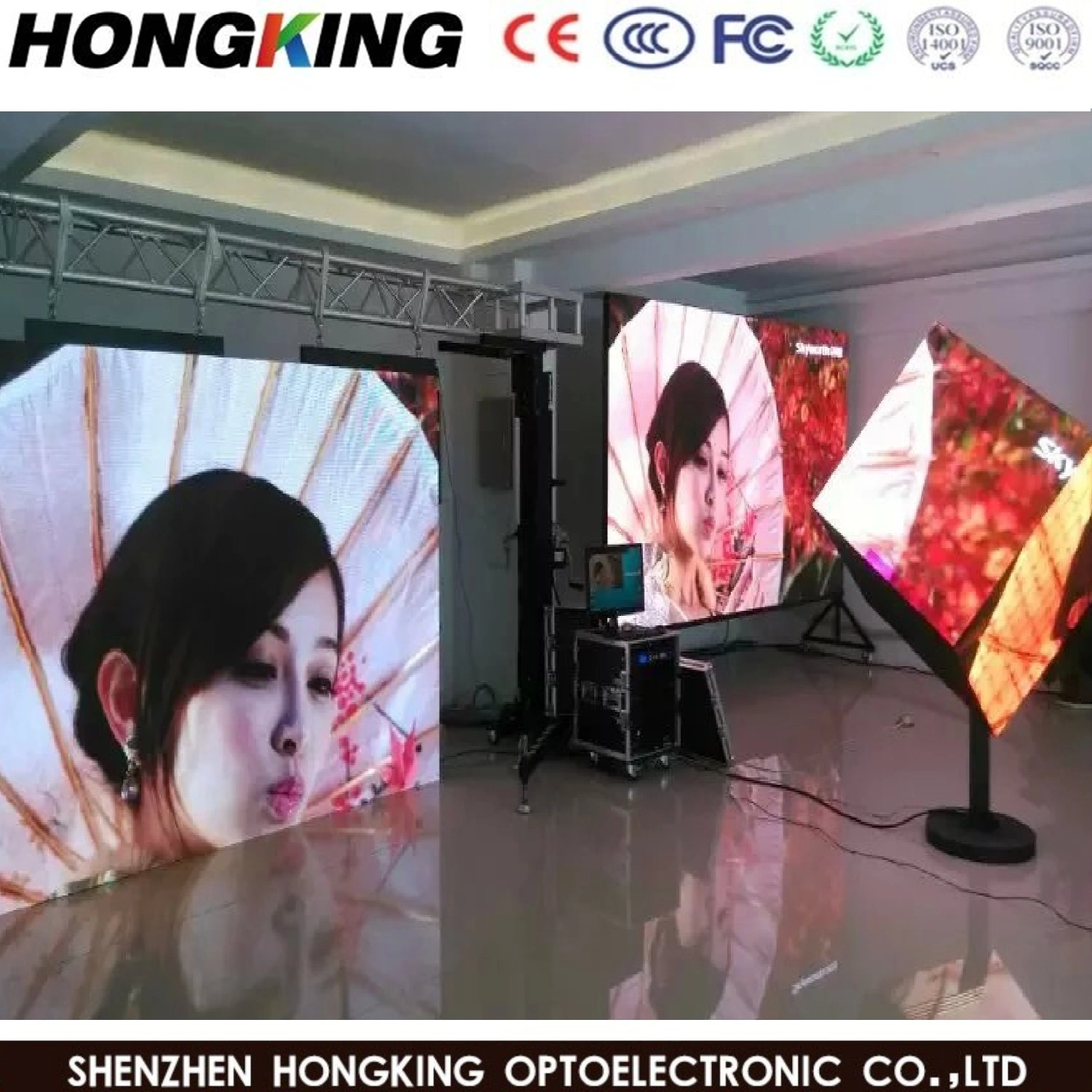

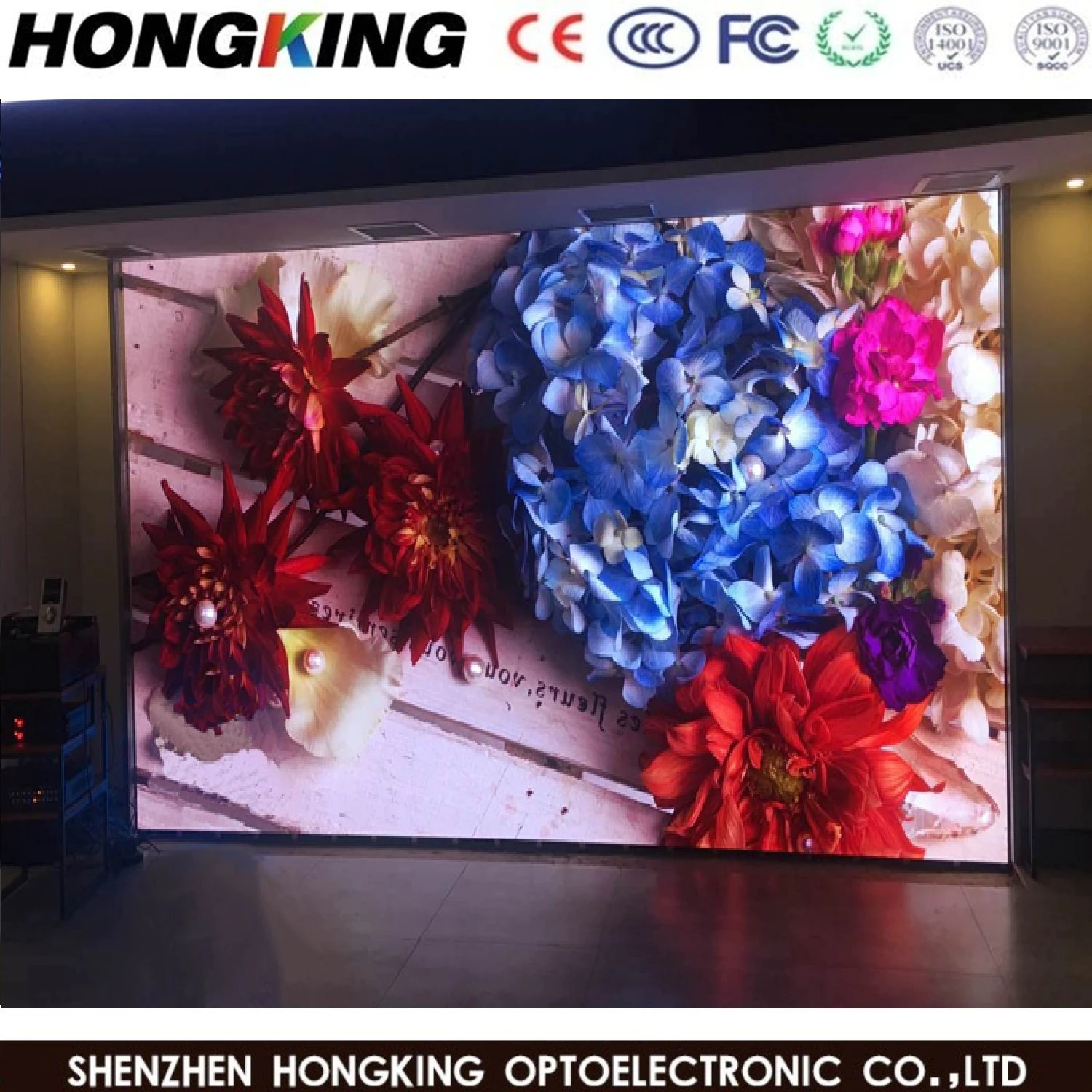

project show :
company workshop :
packing :Wooden Case, Flight Case, and Carton
Company descripition:
HONGKINGLED is a publicly listed LED display manufacturer. Our facilities cover an area of 1000 square meters. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 6 years, we have made steady progress. Ingenuity and perseverance have firmly established us as pioneers in the LED display industry. Our company is dedicated to the research and development of LED related technologies. HONGKINGLED products are approved by CE, CCC, EMC and FC. We are fully certified by ISO standards.
FAQ :
1. Q: Can I get some samples?
A: Yes,sample order is available for quality check and market test.
2. Q: What's your payment term? How long is your delivery time ?
A: We accept T/T ,ALIBABA Trade Assurance ,Paypal ,Western Union ,Money Gram, and Cash
At least 30- 50% deposit in advance, and the balance should be paid before delivery. Our average Production time is 7-18working days after receiving the deposit.If your order is rapidly urgent,we can arrange your order firstly.
3. Q: How long is the warranty period ?
A: Non-artificial damage, 2-3 years warranty
4. Q: Do you have the products in stock?
A: Yes ,of course
5. Q: Freight Cost?
A: The shipping cost depends on different weight;
We will choose the cheapest and safest way according your detail quantities.
6. Q: How does your factory do regarding the quality control?
A: Quality is priority. Every product will be fully assembled and carefully tested before packing
and shipping.
7. Q:How can I get technical support?
A: We treasure every customer that shake hands with our Hongking.
We offer youTEAMVIEWER help by Online Video Or can send professional engineer to your city to offer on-site guide .
8. Q:Is Available to print customer required logo on your led product ?
A: Surely it is .Please inform and confirm the logo design details with our team ahead of the production.Then,we will follow your requirement.
1.Most of our product use material as follow:
1.MBI 5153 IC or ICN2153 Driver IC
2.MW or G-energy power supply
3. 4layer pcb 2.0mm board
4. warranty.2-3years
1.· Durable, reliable, precisely made Aluminum die-casting, fanless design Small expansion coefficient
2. Spring locks connect the cabinets vertically,
3. Signal and power indicator & reset button well shows the working condition of the whole screen;
4. Fast spring locks connect the cabinets horizontally, only 10 seconds for per cabinet;
5. Light-weight 4.6kg/pc. for panel with light-weight sub-frame structure design
6. Nanotechnology and unique positioning system, making the installation and dismantlement in one step;
products descripition:
| NO.: | Product name | P1.25 led display screen | |||
| 1 | Pixel Pitch(mm) | 1.25mm | |||
| 2 | Pixel configuration | 1R1G1B/SMD1010 lamp | |||
| 3 | Pixel density | 640000 dots/m2 | |||
| 4 | Brightness | 900 cd/m2 | |||
| 5 | Module size(W*H) | 200*150mm | |||
| 6 | Module Resolution (W*H) | 240 dots x 135dots | |||
| 7 | Module weight | 500g | |||
| 8 | Cabinet size (W*H) | 400mm×300mm or 600MM X 337.5 | |||
| 9 | Drive IC | MBI5153 or ICN 2153 | |||
| 10 | Drive mode | 1/26scan | |||
| 11 | Viewing Angle(V/H) | 140 ºC | |||
| 12 | Grey Scale | 65536 degree | |||
| 13 | Life time | >100,000 Hours (50%) | |||
| 14 | MTBF | >50,000 Hours | |||
| 15 | Operating Voltage | AC110V/220V±10% | |||
| 17 | Screen Power Consumption | Max: 900w/m2; Average:300w/m2 | |||
| 18 | Input Power Frequency | 50/60Hz | |||
| 19 | Operating temperature | -30--60ºC | |||
| 20 | Humidity | 10%-95% | |||
| 21 | Refresh Rate | ≥3840HZ | |||
| 22 | Control Method | Synchronized with computer monitor | |||
| 23 | Color Temperature | 6500K-9500K | |||
| 24 | LED control system | LINSN,Nova-star,Colorlight is selectable | |||
| 25 | Control Distance | 100 m (no repeating); Optical fiber transmission: 500m- 15km | |||
| 26 | Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI | |||
| 27 | Systems Operating Platform | Windows Xp / Windows 7 / windows 8 /8.1 / windows 10 | |||
company introduction :
project show :
company workshop :
packing :Wooden Case, Flight Case, and Carton
Company descripition:
HONGKINGLED is a publicly listed LED display manufacturer. Our facilities cover an area of 1000 square meters. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 6 years, we have made steady progress. Ingenuity and perseverance have firmly established us as pioneers in the LED display industry. Our company is dedicated to the research and development of LED related technologies. HONGKINGLED products are approved by CE, CCC, EMC and FC. We are fully certified by ISO standards.
FAQ :
1. Q: Can I get some samples?
A: Yes,sample order is available for quality check and market test.
2. Q: What's your payment term? How long is your delivery time ?
A: We accept T/T ,ALIBABA Trade Assurance ,Paypal ,Western Union ,Money Gram, and Cash
At least 30- 50% deposit in advance, and the balance should be paid before delivery. Our average Production time is 7-18working days after receiving the deposit.If your order is rapidly urgent,we can arrange your order firstly.
3. Q: How long is the warranty period ?
A: Non-artificial damage, 2-3 years warranty
4. Q: Do you have the products in stock?
A: Yes ,of course
5. Q: Freight Cost?
A: The shipping cost depends on different weight;
We will choose the cheapest and safest way according your detail quantities.
6. Q: How does your factory do regarding the quality control?
A: Quality is priority. Every product will be fully assembled and carefully tested before packing
and shipping.
7. Q:How can I get technical support?
A: We treasure every customer that shake hands with our Hongking.
We offer youTEAMVIEWER help by Online Video Or can send professional engineer to your city to offer on-site guide .
8. Q:Is Available to print customer required logo on your led product ?
A: Surely it is .Please inform and confirm the logo design details with our team ahead of the production.Then,we will follow your requirement.
